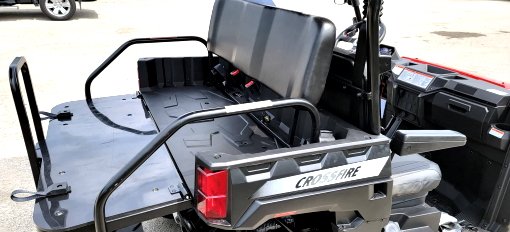

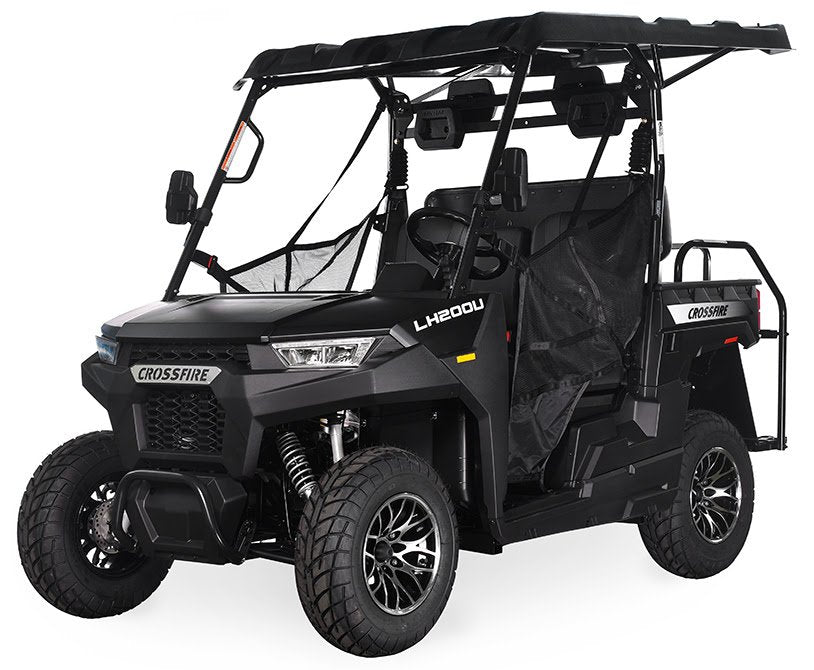

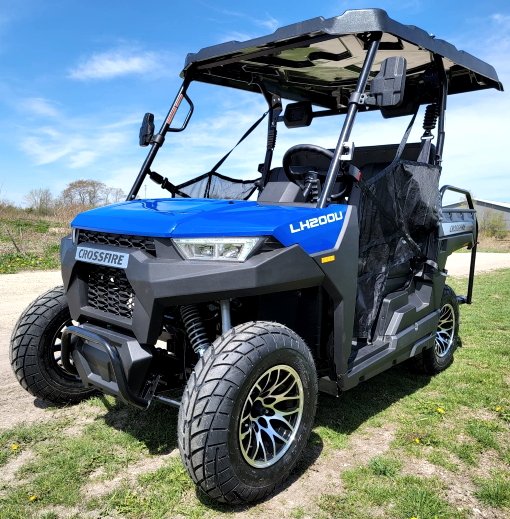

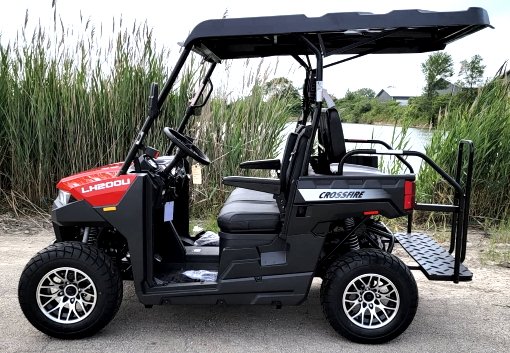

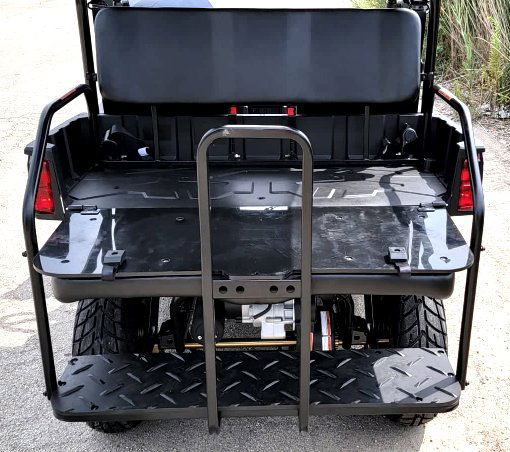

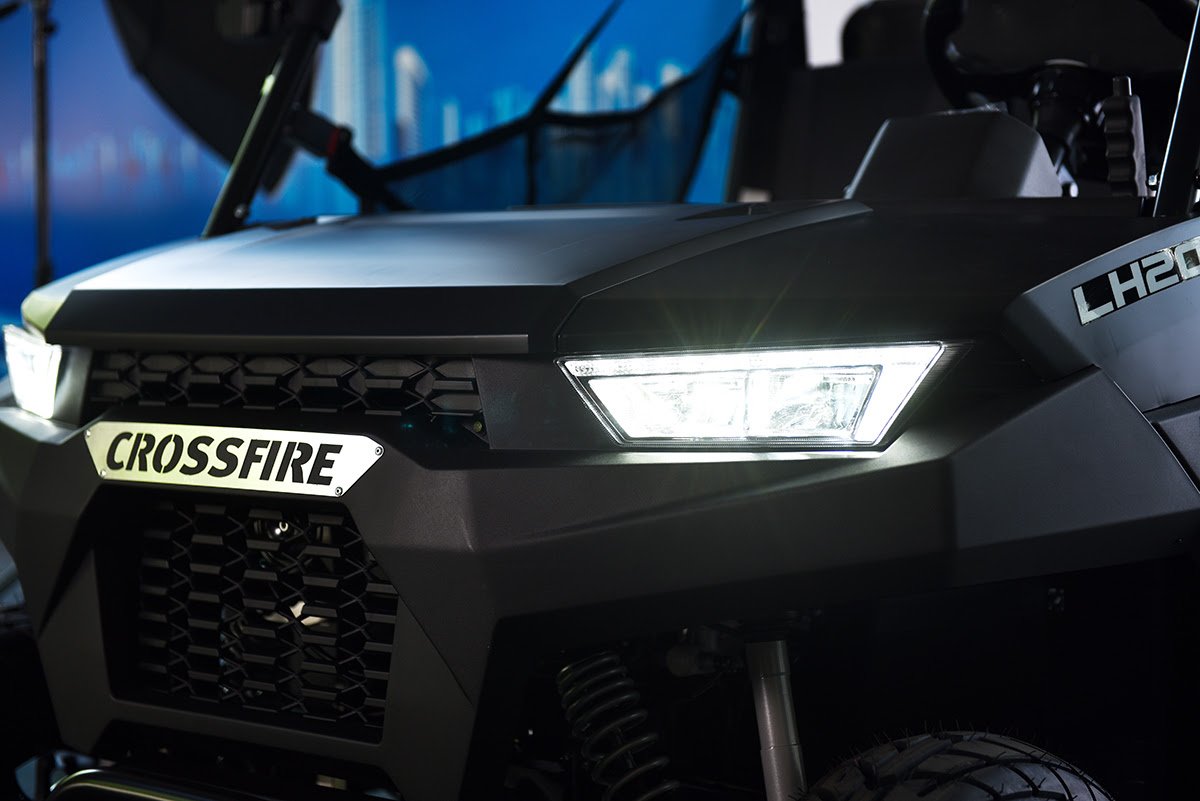

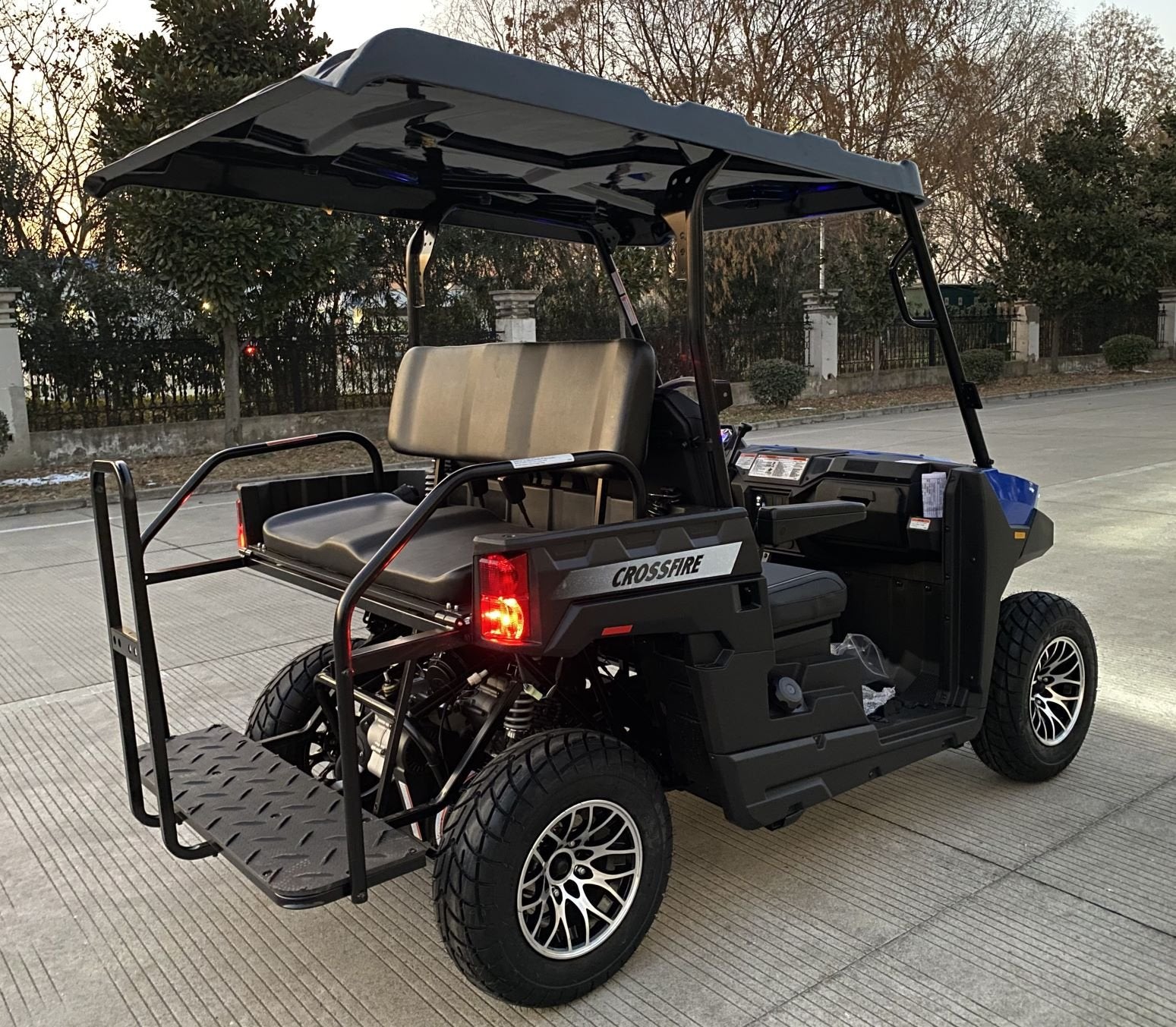

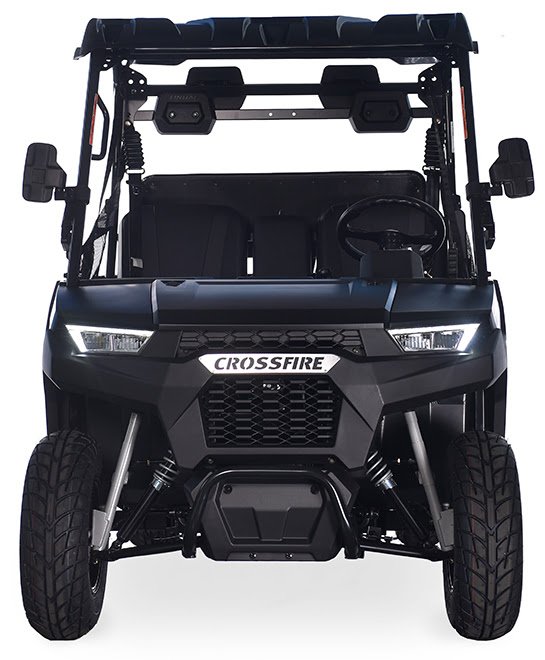

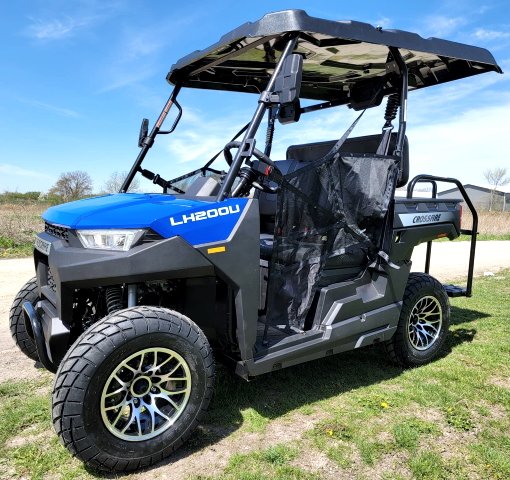

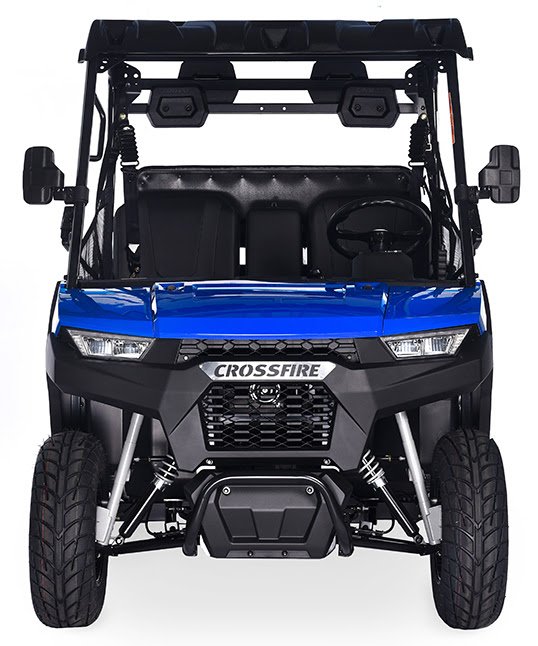

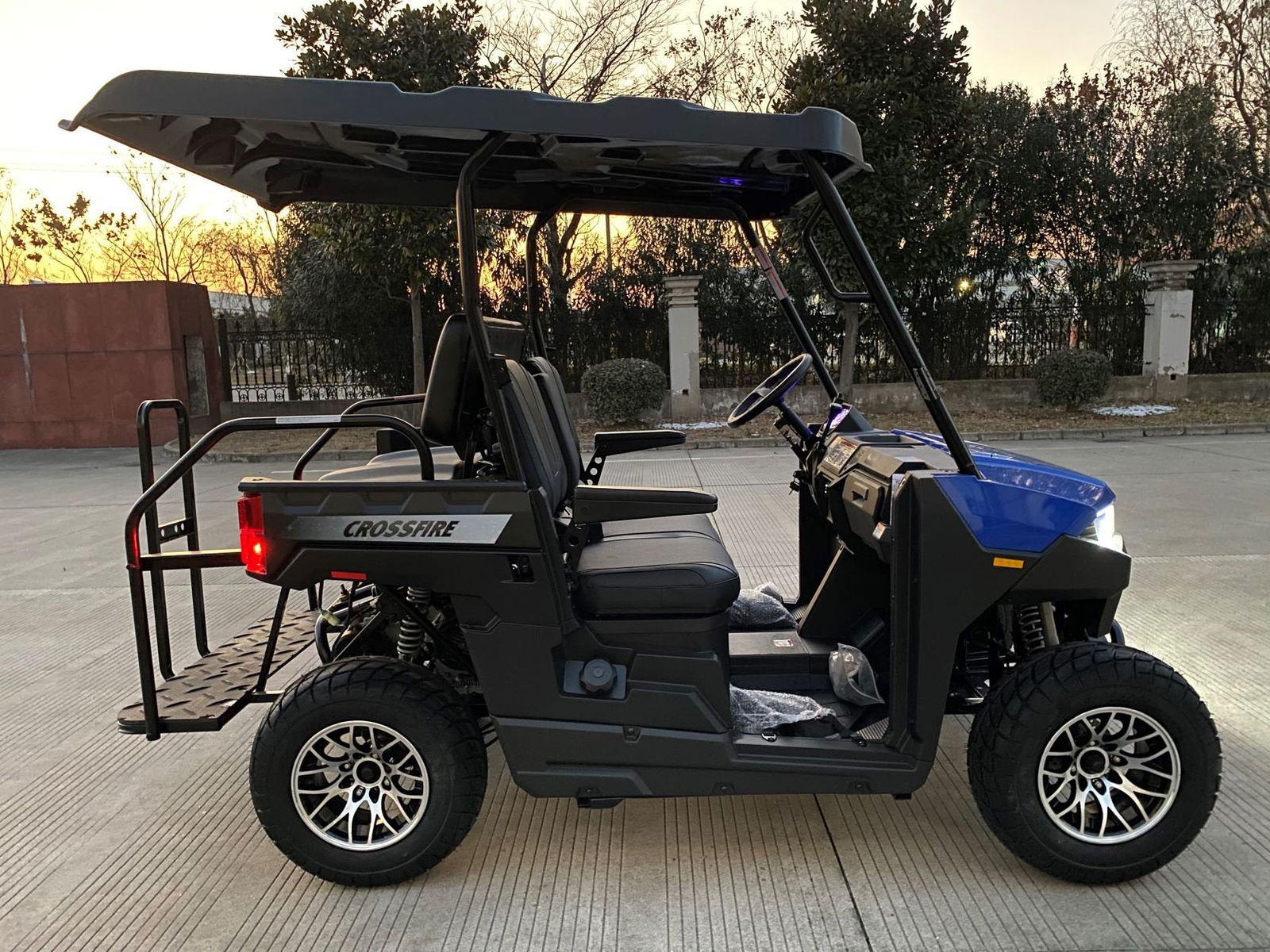

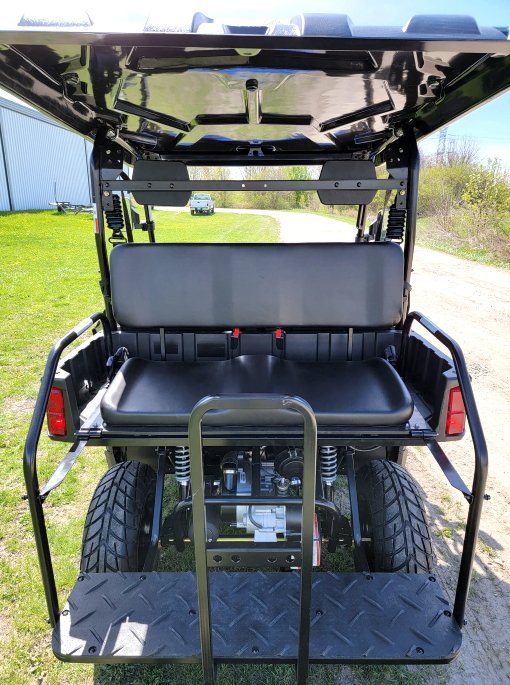

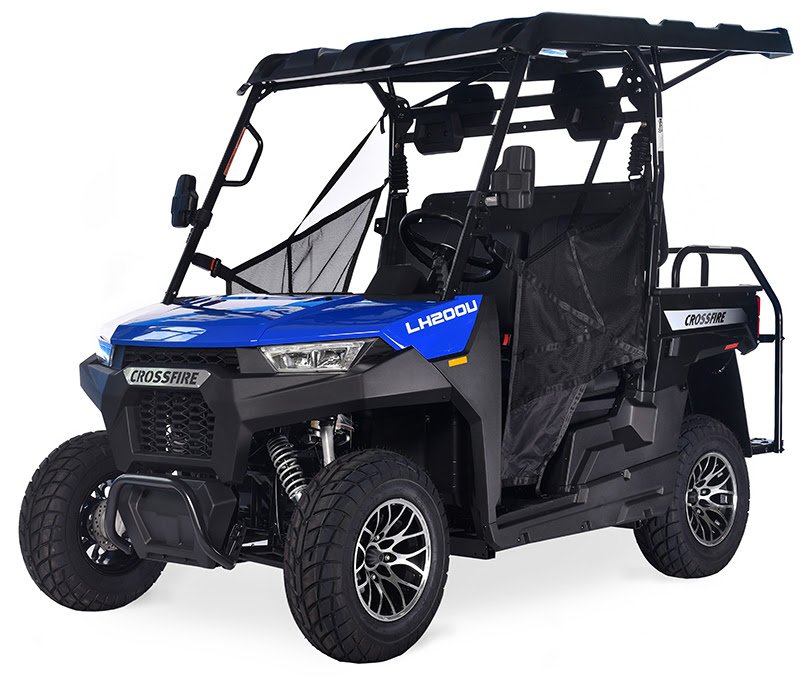

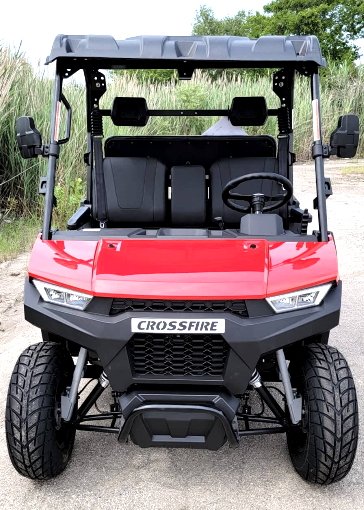

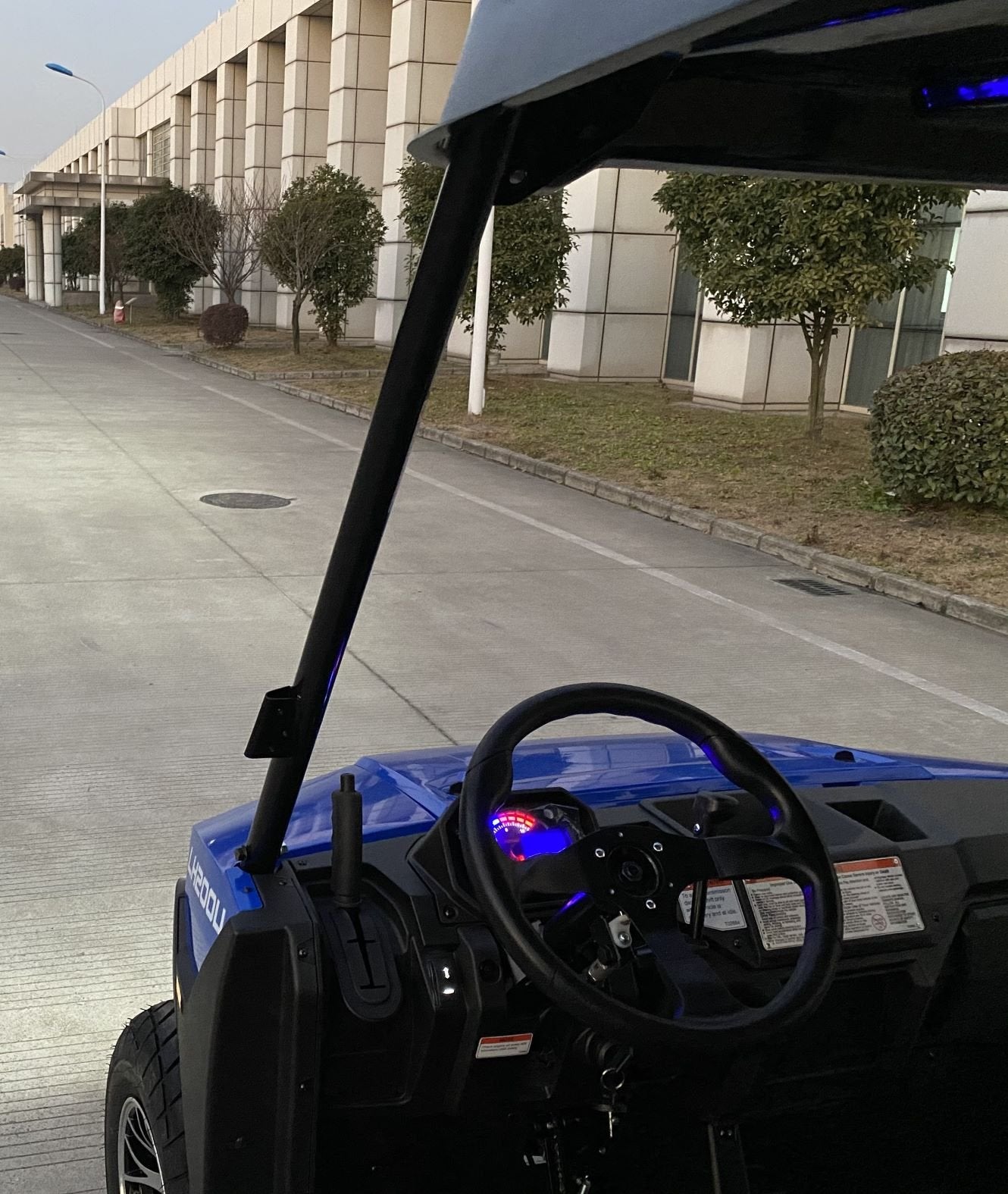

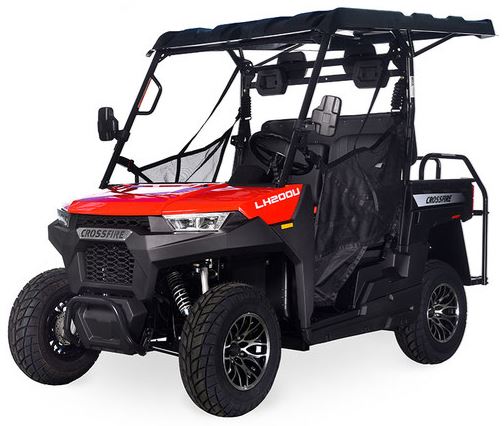

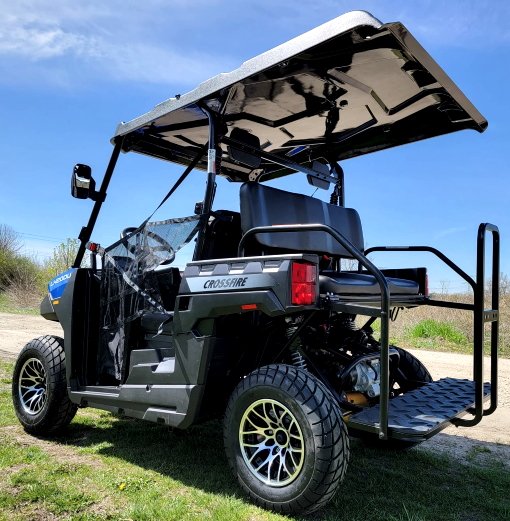

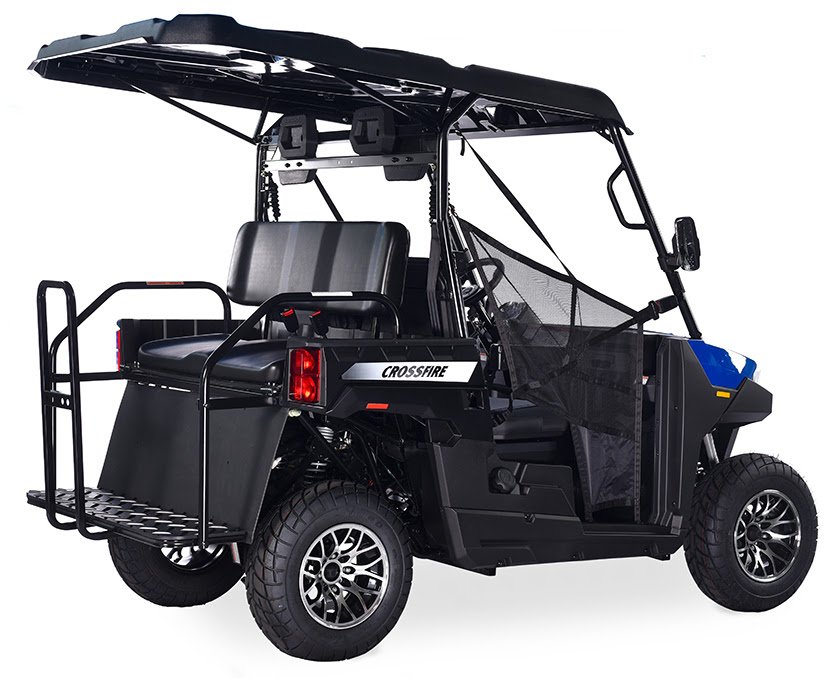

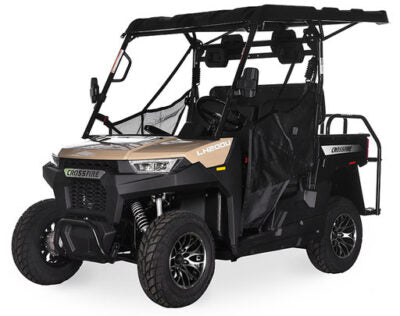

Enhance your outdoor experience with the Crossfire LH200 Gas Golf Cart. Powered by a 177cc 12hp fuel injected engine, this vehicle boasts an automatic transmission with reverse and four-wheel hydraulic disc brakes for optimal control. With deluxe alloy wheels, all-terrain tires, and a dump bed, this UTV is ready for any adventure.
Specifications
|
Overall Vehicle Size (L x W x H) inch
|
92×57×72 in
|
|
Ground Clearance (inch)
|
5.5 in
|
|
Wheelbase (inch)
|
69.3 in
|
|
Weight with full equipment (lbs)
|
837.7 lbs
|
|
Front/Rear Brakes
|
Four Disc brake
|
|
Parking Brake
|
Hand-Actuated
|
|
Front Tires
|
AT22 x 7-10
|
|
Rear Tires
|
AT22 x 10-10
|
|

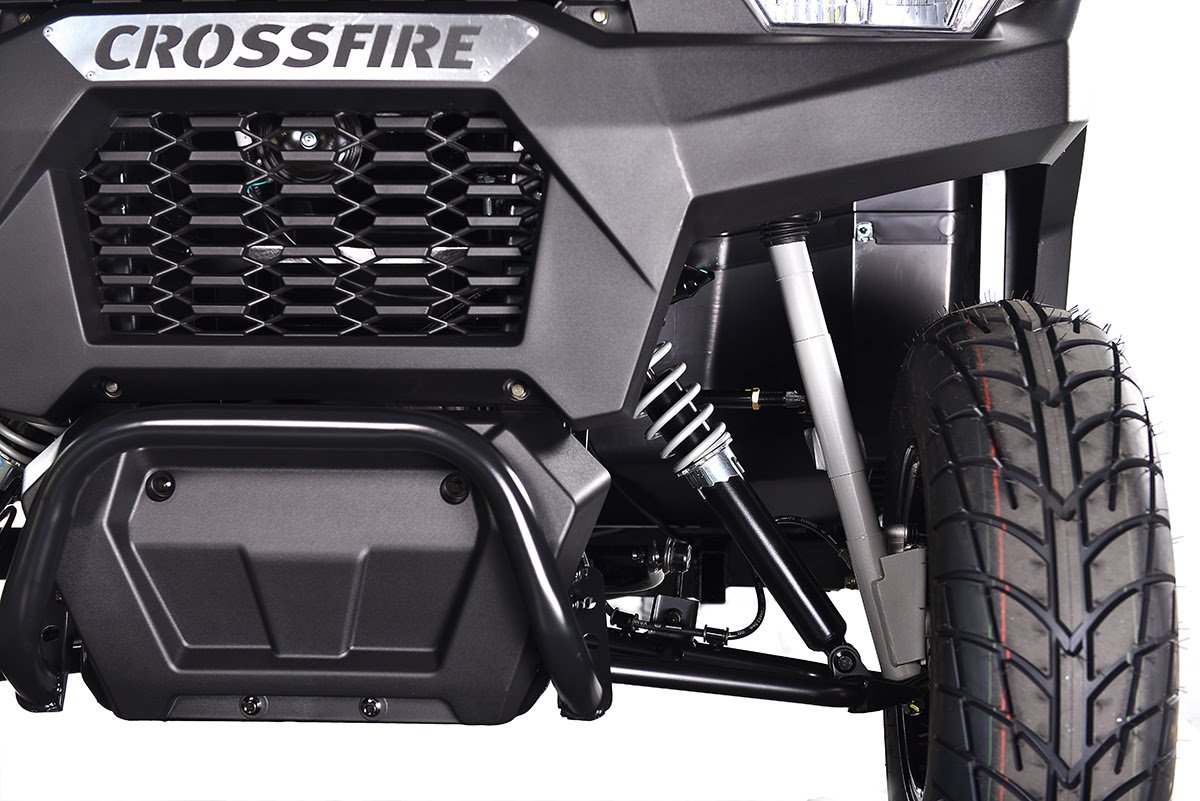

Front Suspension
|
Dual A-Arm
|
|
Rear Suspension
|
Swingarm Dual Shocks
|
|
Cargo Box Dimensions (L x W x H) inch
|
21.8×49.6×6.5 in
|
|
Box Capacity (lbs)
|
441 lbs
|
|
Fuel Capacity
|
3.1 gallon
|
|
Engine specification
|
|
Cooling
|
Air & Oil
|
|
Engine capacity (cc)
|
177.3 cc
|
|
Volumetric Compression Ratio
|
9.6:1
|
|
Drive System Type
|
2WD
|
|
Engine Type
|
Single Cylinder 4-Stroke
|
|
Fuel System/Battery
|
Electronic Fuel Injection
|
|
Ignition type
|
T.C.I
|
|
Start type
|
Electric
|
|
Ignition Coil
|
ECU
|
|
Horsepower
|
12
|
|
Transmission/Final Drive
|
CVT F/N/R; Chain
|
|
Maximum power (HP /r/min)
|
12hp/7000～7500RPM
|
|
Maximum Torque (Nm /r/min)
|
13N·m/6000～6500RPM
|
|
Top Speed (mile/h)
|
30 mile
|
